You've browsed to RTCs and Clock Buffers
Home
RTCs and Clock Buffers
Package (mm)
3.2x1.5x0.8
3.7x2.5x0.9
Interface
I2C
SPI
ACT Series
Datasheet
Package (mm)
Key Features
Interface
Initial tolerance (25°C, ppm)
Temperature stability (ppm)
Temperature range (°C)
Current consumption (nA)
Supply voltage (V)
Battery switch
Event input
Timer
Email us

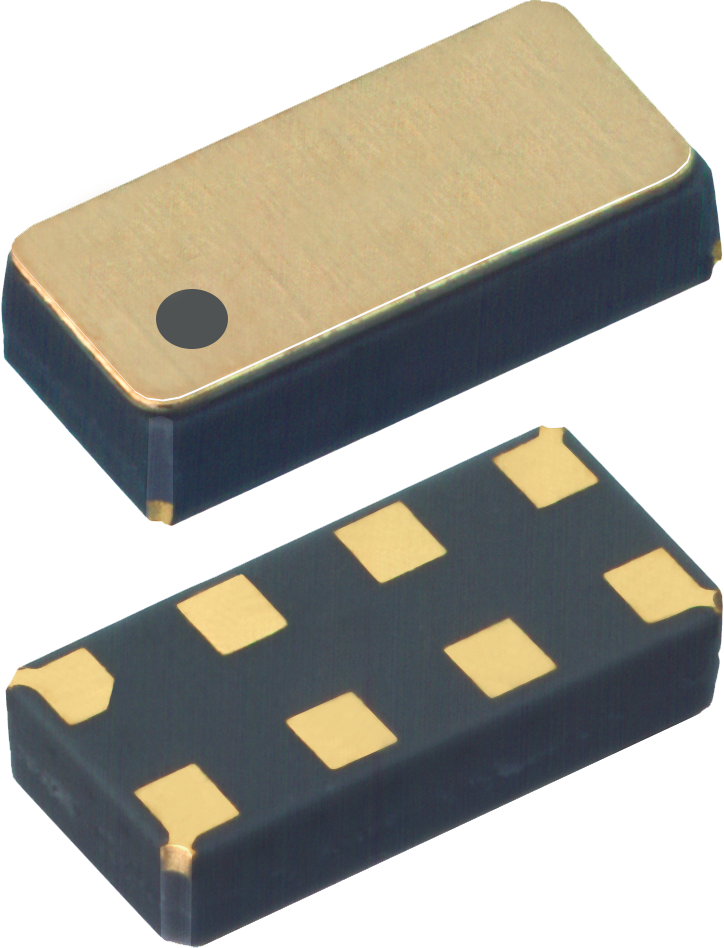

ARTC850-USLP-PF
3.2x1.5x0.8
Ultra small, low power
SPI
±20
-
-40 to +85
190
0.9 - 5.5
✔
ARTC300C-HAS-PF
3.7x2.5x0.9
High accuracy and stability
SPI
-
±25
-40 to +85
800
1.3 - 5.5
✔
-
✔
ARTC300B-HAS-PF
3.7x2.5x0.9
High accuracy and stability
SPI
-
±8
-40 to +125
800
1.3 - 5.5
✔
-
✔
ARTC300A-HAS-PF
3.7x2.5x0.9
High accuracy and stability
SPI
-
±6
-40 to +85
800
1.3 - 5.5
✔
-
✔
ARTC8050-HALP-PF
3.2x1.5x0.8
High accuracy, low power
I2C
-
±3
-40 to +85
240
1.5 - 5.5
-
✔
✔
ARTC4050-US-PF
3.2x1.5x0.8
Ultra small
I2C
±20
-
-40 to +85
350
1.3 - 4.4
-
-
-
ARTC2050-XLP-PF
3.2x1.5x0.8
Extreme low power
I2C
±1
-
-40 to +85
40
1.2 - 5.5
✔
✔
✔
ARTC3000C-HAS-PF
3.7x2.5x0.9
High accuracy and stability
I2C
-
±25
-40 to +85
800
1.3 - 5.5
✔
-
✔
ARTC3000B-HAS-PF
3.7x2.5x0.9
High accuracy and stability
I2C
-
±8
-40 to +125
800
1.3 - 5.5
✔
-
✔
ARTC3000A-HAS-PF
3.7x2.5x0.9
High accuracy and stability
I2C
-
±6
-40 to +85
800
1.3 - 5.5
✔
-
✔
