You've browsed to Crystals

Image	ACT series	Datasheet	SMD / TH	Package (mm)	Key features	Frequency (MHz)	Frequency low	Frequency high	Initial tolerance (ppm)	Temperature stability from (ppm)	Max. operating temperature range (˚C)	No. of pads / pins	Email us

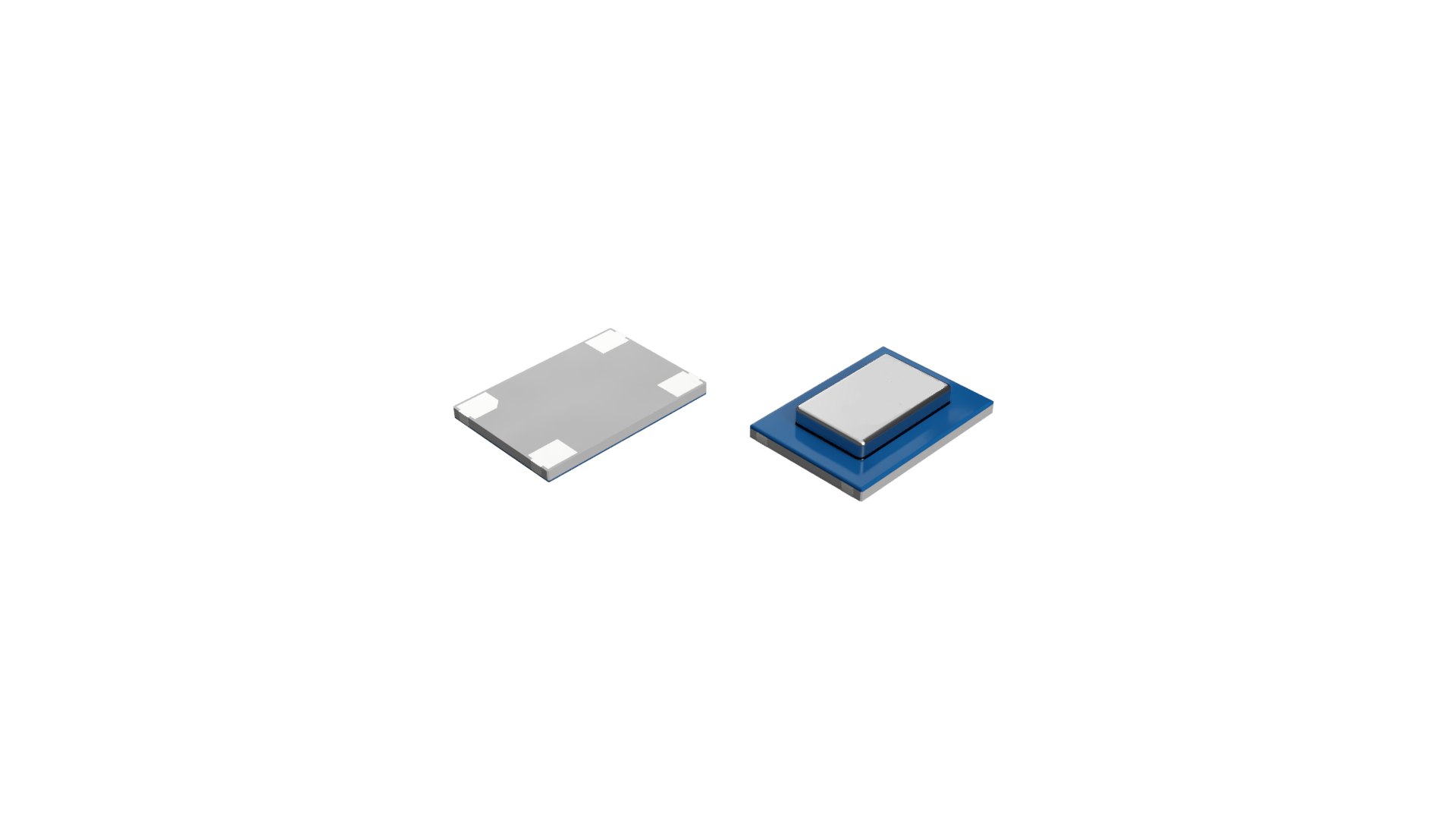

	780HX-4		SMD	7.0 x 5.0	Hybrid Crystal	8.000 - 48.000	8	48	±20	±20	-40 to +85	4
	1210 SMX-4 (NEW)		SMD	1.2 x 1.0	Smallest available crystal	32.000 - 60.000	32	60	±10	±10	-40 to +125	4 pad
	3225G SMX-4		SMD	3.2 x 2.5	Glass sealed package	10.000 - 64.000	10	64	±10	±10	-40 to +125	4 pad
	5032H SMX-4		SMD	5.0 x 3.2	Low aging (RF clock series)	7.000 - 80.000	7	80	±10	±10	-30 to +85	4 pad
	3225H SMX-4		SMD	3.2 x 2.5	Low aging (RF clock series)	12.000 - 54.000	12	54	±10	±10	-40 to +125	4 pad
	3225S SMX-4		SMD	3.2 x 2.5	Standard	10.000 - 64.000	10	64	±10	±10	-40 to +125	4 pad
	2520H SMX-4		SMD	2.5 x 2.0	Low aging (RF clock series)	12.000 - 54.000	12	54	±10	±10	-40 to +125	4 pad
	2016H SMX-4		SMD	2.0 x 1.6	Low aging (RF clock series)	24.000 - 54.000	24	54	±10	±10	-40 to +125	4 pad
	1612H SMX-4		SMD	1.6 x 1.2	Low aging (RF clock series)	26.000 - 54.000	26	54	±10	±10	-40 to +125	4 pad
	1016 SMX-4		SMD	1.6 x 1.2	Low profile crystal	24.000 - 54.000	24	54	±10	±10	-40 to +125	4 pad
	533 SMX-2		SMD	5.0 x 3.2	Glass sealed	7.000 - 60.000	7	60	±30	±10	-40 to +85	2 pad
	531 SMX-4		SMD	5.0 x 3.2		8.000 - 54.000	8	54	±10	±10	-40 to +85	4 pad
	2205 SMX-4		SMD	2.5 x 2.0	Standard	12.000 - 62.500	12	63	±10	±10	-40 to +125	4 pad
	2016 SMX-4		SMD	2.0 x 1.6	Standard	16.000 - 62.500	16	63	±10	±10	-40 to +125	4 pad
	HC49U		TH	HC49U	Not recommended for new designs	1.843 - 150.000	2	150	±5	±5	-40 to +85	2 pin
	UM5		TH	UM5	Not recommended for new designs. Gull wing SMD available	10.000 - 100.000	10	100	±5	±5	-40 to +85	2 pin
	UM1		TH	UM1	Not recommended for new designs. Gull wing SMD available	3.510 - 100.000	4	100	±5	±5	-40 to +85	2 pin
	HC49US		TH	HC49US	Not recommended for new designs. Gull wing SMD available	3.000 - 100.000	3	100	±5	±5	-40 to +85	2 pin
	HC49US SMX		SMD	HC49US SMX	Various height options	3.000 - 100.000	3	100	±5	±10	-40 to +85	2 pad
